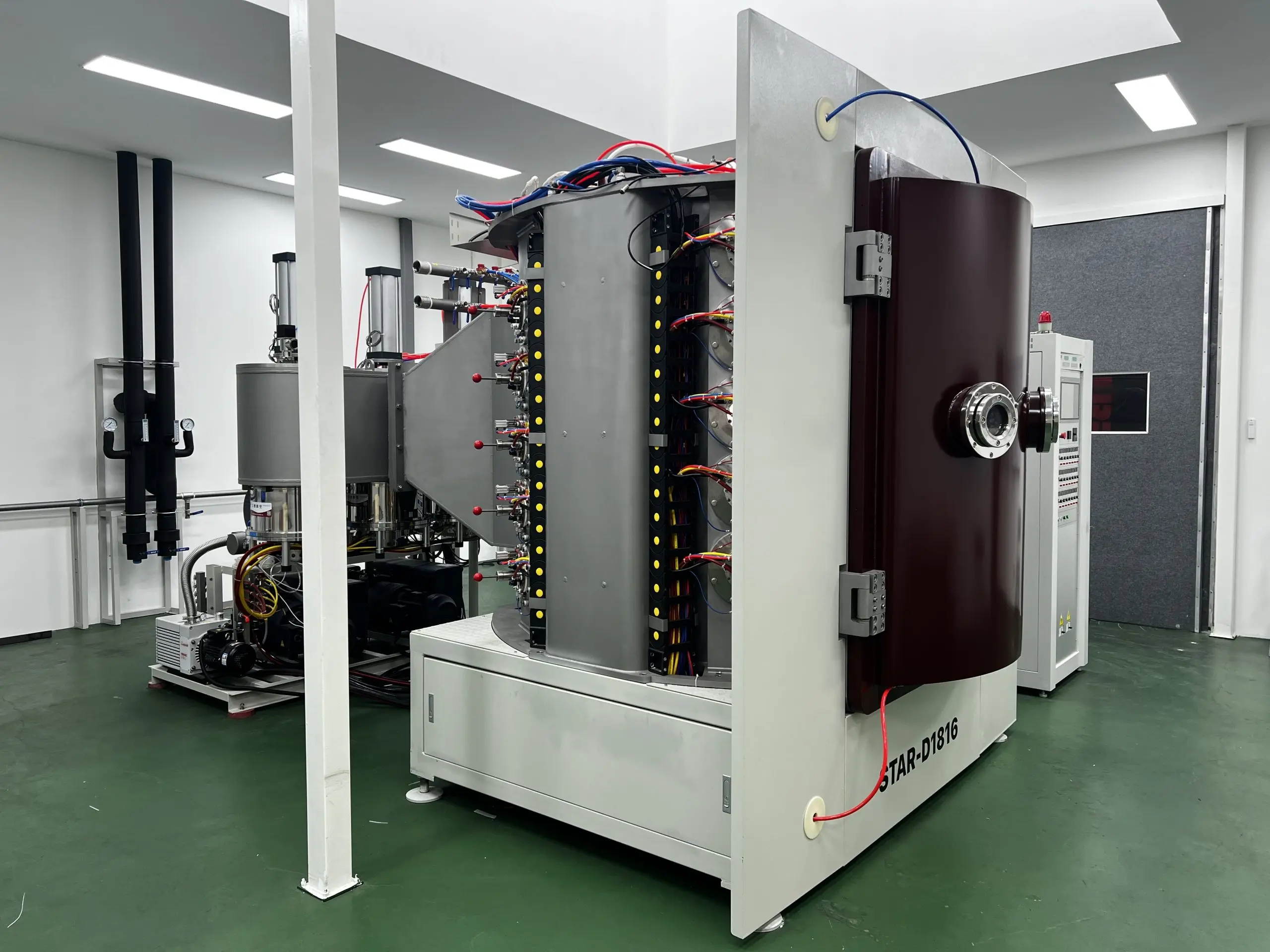

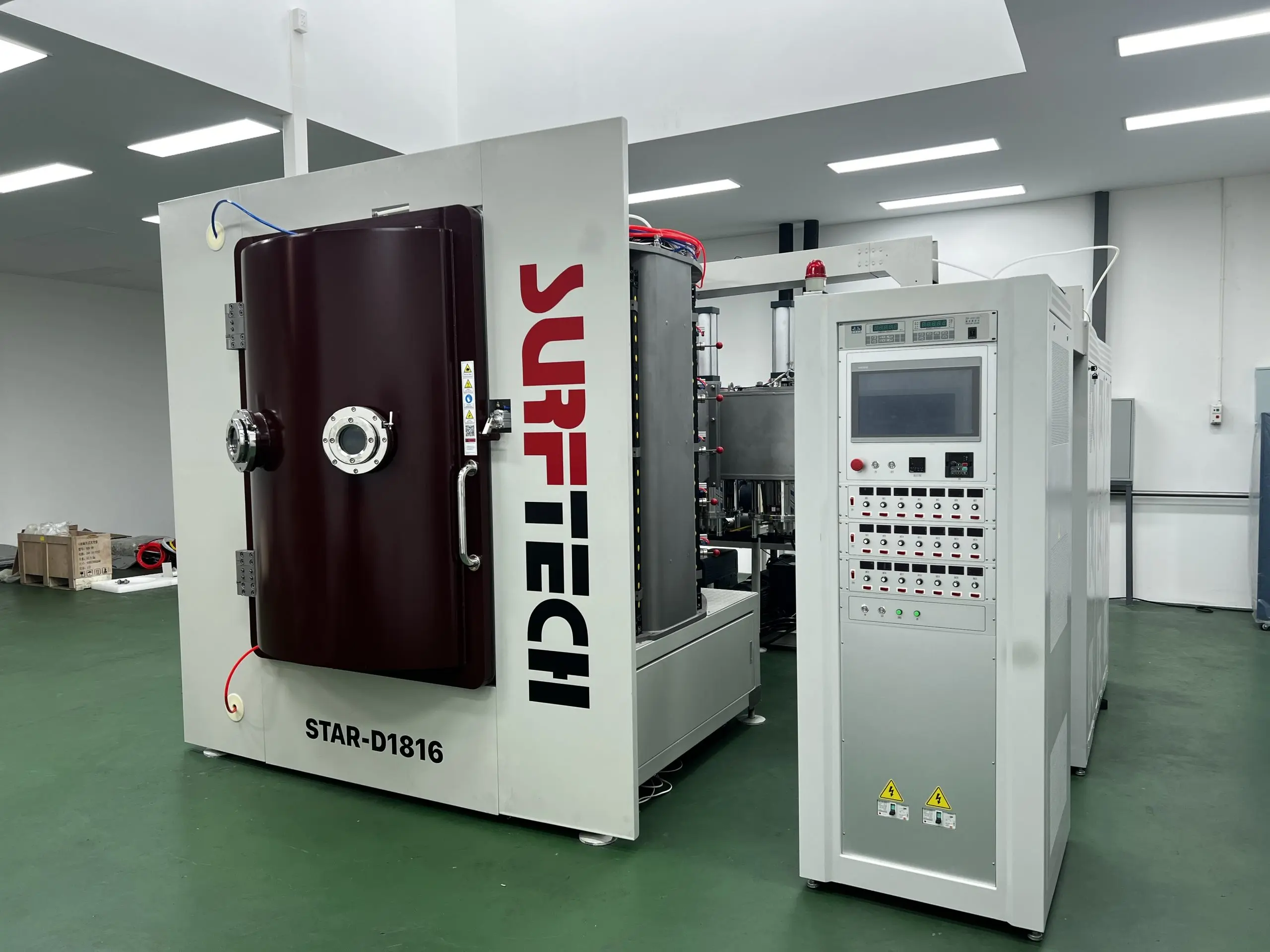

STAR-D1000/1816 PVD Coating System
If you are in search of the ultimate PVD coating system to achieve stunning decorative finishes, look no further than the STAR-D1000/1816. With its spacious vacuum chamber, it can accommodate large home appliances and furniture, allowing you to transform your creations with elegance and precision. Choose from a diverse palette of over 10 enchanting colors, including gold, rose gold, bronze, burgundy, copper gold, cobalt blue, pear green, and more. The STAR-D1000/1816 is your gateway to a world of vibrant possibilities in surface enhancement.
Features:
- Quality built for longer lifetime and less maintenance
- 304 stainless steel vacuum chamber
- Fast cycle time in 15 – 40 minutes
- More than 1,000 units installed worldwide
- Integration with 30 years of PVD coating experience
Vacuum Chamber
- Construction: 304 Stainless Steel with water cooling
- Chamber Size:
- D1000 - Φ 1000 × 1000 mm (Φ 39.4” x 39.4”)
- D1816 - Φ 1800 × 1600 mm (Φ 70.9” x 63.0”)
- Effective Plasma Zone:
- D1000 - Φ 7000 × 700 mm (Φ 27.6” x 27.6”)
- D1816 - Φ 1400 × 1200 mm (Φ 55.1” x 47.2”)
Cathodic Arc Evaporation Source
- Evaporator:
- D1000 - 12 sets of Φ100 mm round cathodic arc evaporator
- D1816 - 20 sets of Φ100 mm round cathodic arc evaporator
Mid-Frequent Sputtering Source
- Evaporator:
- D1000 - 2 sets of Φ70 x 850 mm cylindrical sputtering evaporator
- D1816 - 4 sets of Φ70 x 1400 mm cylindrical sputtering evaporator

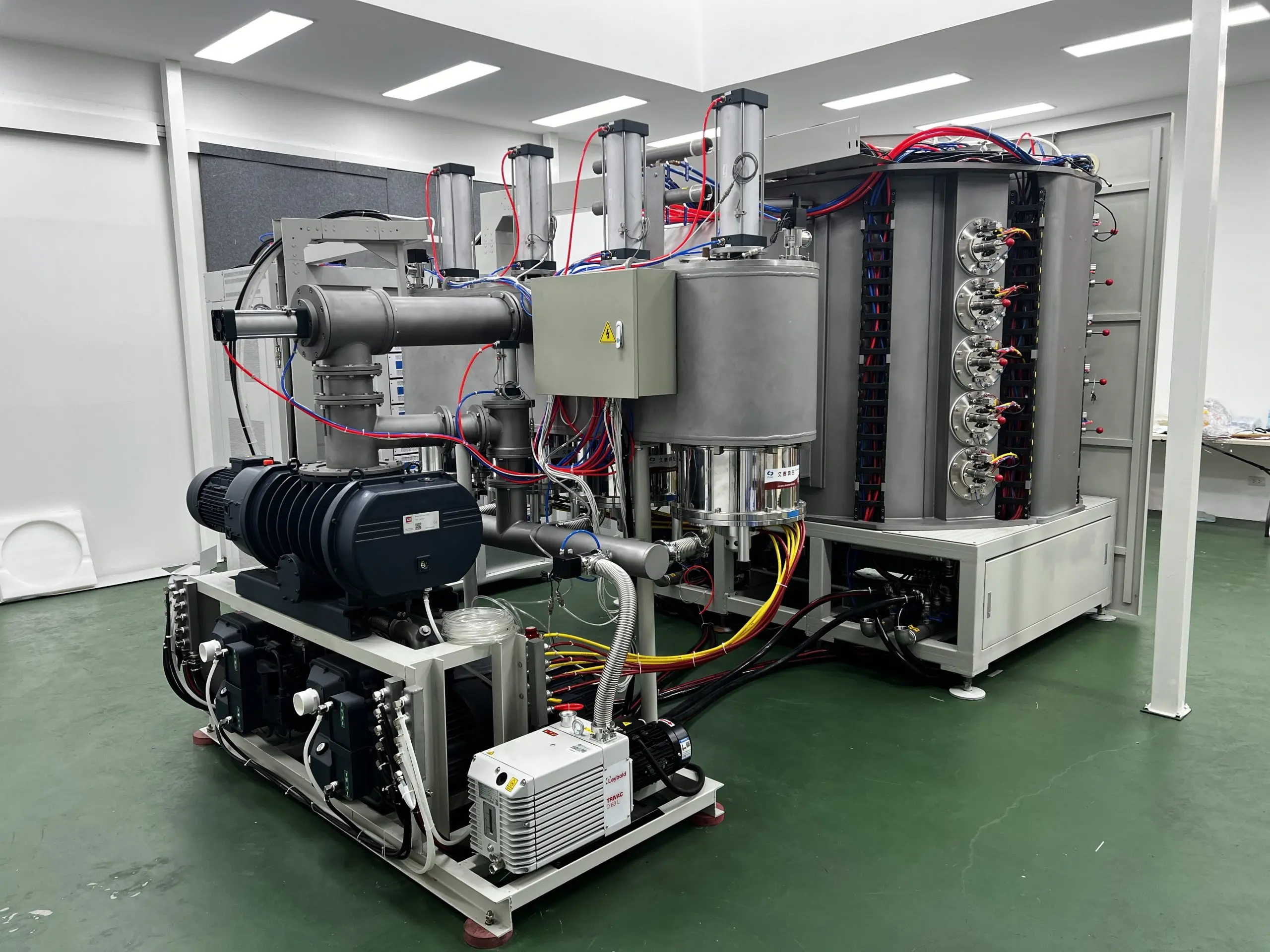

Pump System
- Mechanical Pump (100m3/h): 1 set
- Mechanical Pump (300m3/h): 2 sets
- Root Pump (300m3/h): 1 set
- Root Pump (4200m3/h): 1 set
- Turbo Molecular Pump (4200L/s): 3 sets
Vacuum Measure & Component
- Mass Flow Controller: 4 sets
- Vacuum gauge: 2 sets
Cycle Time
- Batch Cycle Time: 15-40 Minutes
Equipment Footprint
- Footprint: L 5018 × W 4560 × H 2675 mm (L 197.6” × W 179.5” × H 105.3”)
